200 Head Cattle Yard Design
$ 95.28

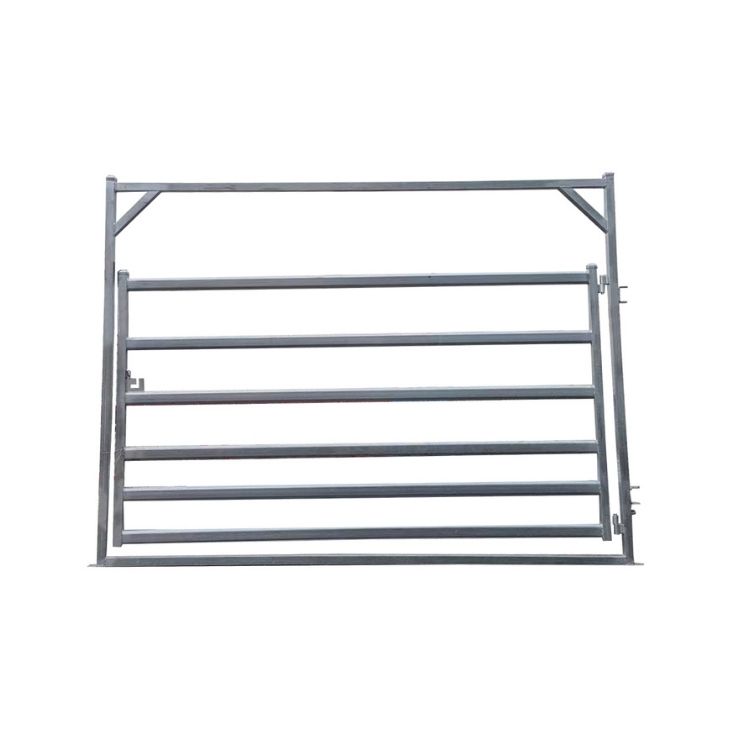

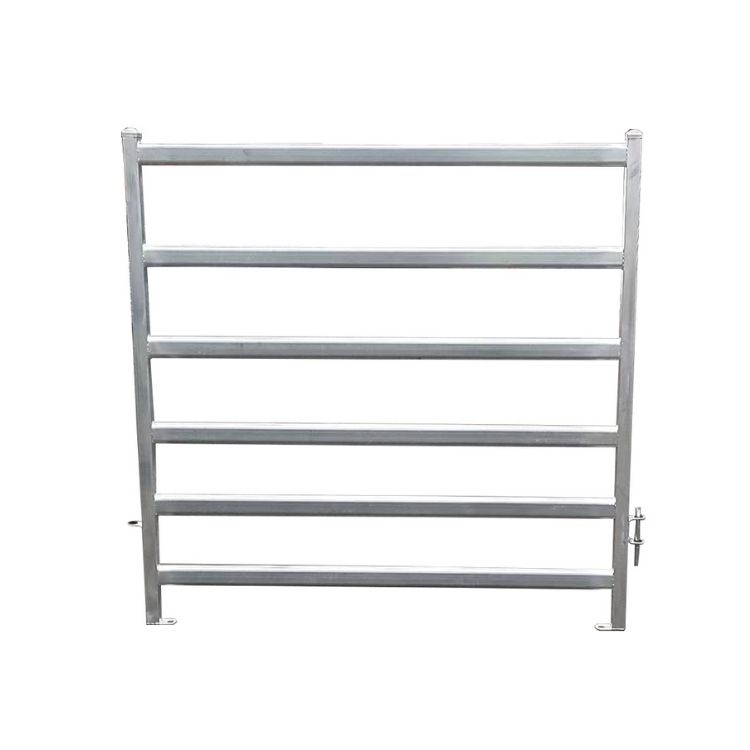

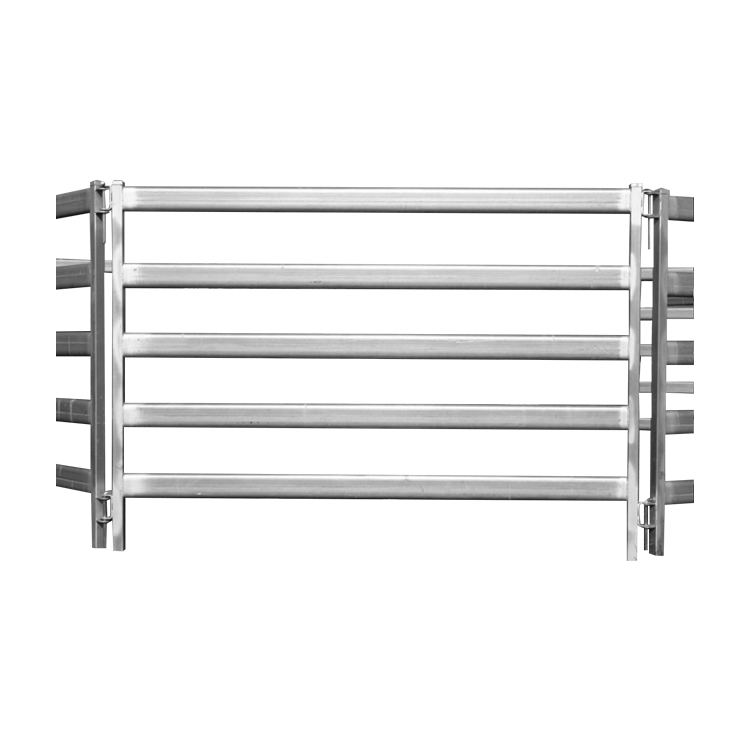

- 200 Head Cattle Yard(200 head holding capacity)** We do delivery, please contact our friendly sales team for freight quote ** 59x 1.8m H x 2.1m L cattle panels, 6 x 1.8m H x 1.8m L cattle panels , 13 x 2.2m L cattle gate, 1 x 4m double cattle gate, 1 x man gate, 1 x premium heavy duty vet cattle crush and 1 x cattle loading ramp and 3 x sliding gate and 5 race bow and 4 manway gate panels. Upgrade to green vet crush would be extra $2500.We also can upgrade to 50×50 upright with 42×115 rail Buffalo panel and gate for extra $2100. 1.8m H x 2.1m L Cattle Panels – Size: 1800mm(H) x 2100mm (W) – Vertical pipe: 50mm x 50mm stiles, 1.6mm Thick – Horizontal rail: 40mm x 80mm rail, 1.6mm thick x 6 Oval – Finish: HDG 15-microns2.3M H X 2.2M L Cattle Gates – Size: 2300mm(H) x 2200mm (W) – Vertical pipe: 50mm x 50mm stiles, 1.6mm Thick – Horizontal rail: 40mm x 80mm rail, 1.6mm thick x 6 Oval – Finish: HDG 15-micronsAdjustable Cattle Loading Ramp With Winch – Height: 3200mm, Length: 2820mm, Width: 1420mm; – Adjustable Ramp Height: 860mm~1460mm – Ramp Size: 720mm Width, 3230mm Length – Vertical Frame: 50*50*2mm; – Top Side Long Tube: 40*40*2mm; – Side Galvanized Sheet: 1.6mm – Galvanized Footboard 2mm thick;
