171 Head Cattle Yard
$ 91.08

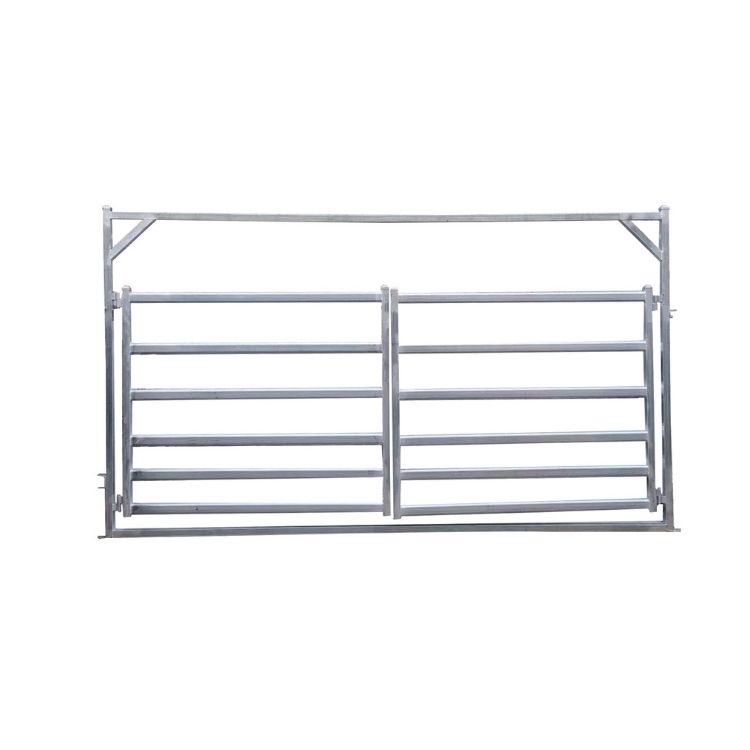

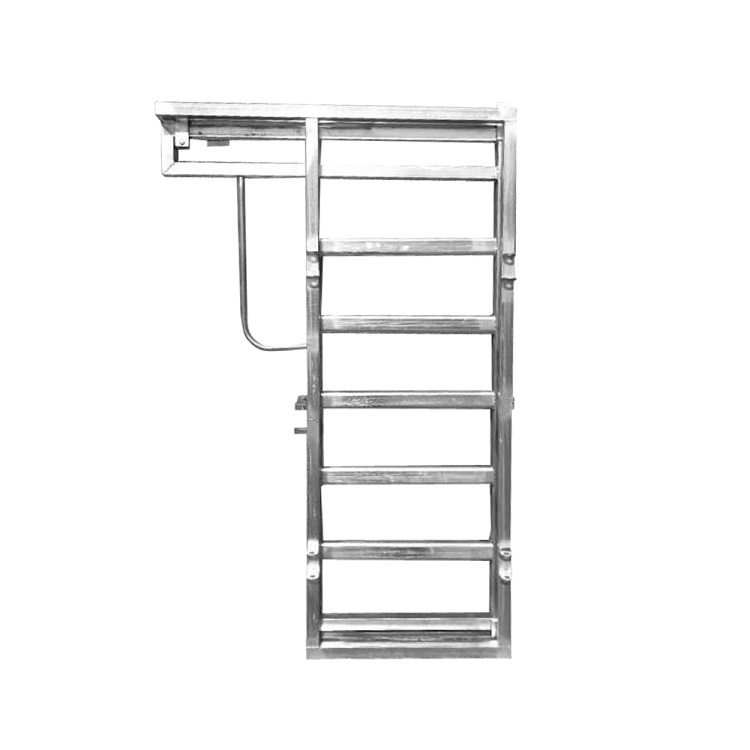

- 171 Head Cattle Yard(171 head holding capacity)** We do delivery, please contact our friendly sales team for freight quote ** 34 x 2.1m L cattle panels, 9 x 2.2m L cattle gate, 1 x vet cattle crush and 1 x cattle loading ramp and 2 x sliding gate and 2 race bow and a manway gate panel. Upgrade to green vet crush would be extra $3000.We also can upgrade to 40mm upright with 30×70 rail panel and gate for extra $850. We also can upgrade to 50mm upright with 40×80 rail Angus panel and gate for extra $1360. We also can upgrade to 50mm upright with 42×115 rail Buffalo panel and gate for extra $4050. 1.8m H x 2.1m L Cattle Panels – Size: 1800mm(H) x 2100mm (W) – Vertical pipe: 40mm x 40mm stiles, 1.6mm Thick – Horizontal rail: 30mm x 60mm rail, 1.6mm thick x 6 Oval – Finish: HDG 15-microns2.3M H X 2.2M L Cattle Gates – Size: 2300mm(H) x 2200mm (W) – Vertical pipe: 40mm x 40mm stiles, 1.6mm Thick – Horizontal rail: 30mm x 60mm rail, 1.6mm thick x 6 Oval – Finish: HDG 15-micronsAdjustable Cattle Loading Ramp With Winch – Height: 3200mm, Length: 2820mm, Width: 1420mm; – Adjustable Ramp Height: 860mm~1460mm – Ramp Size: 720mm Width, 3230mm Length – Vertical Frame: 50*50*2mm; – Top Side Long Tube: 40*40*2mm; – Side Galvanized Sheet: 1.6mm – Galvanized Footboard 2mm thick;
